SDD Sliding Door Damper
We present a new product group for a smooth dampening and closing of sliding doors and other applications involving linear moved masses of ca. 40-400 kg.
The Sliding Door Gas Spring is our inexpensive entry-level product. Complementing the SD product family, the SDG provides a safe braking and prevents the braked masses from swinging back.
The SDD is an advanced product for a safe, gentle and targeted braking and closing of sliding doors. With our Sliding Door Damper we are launching a real door-damper innovation into the market.
The Sliding Door Damper (SDD) provides a harmonious and safe damping, even when closing heavy doors, windows and drawer of 60-400 kg. Its novel design and suitability for linear moved masses of more than 100 kg make the SDD a value-adding product for many industries. Depending on the speed and weight of the door, we do have the suitable SDD for your application.

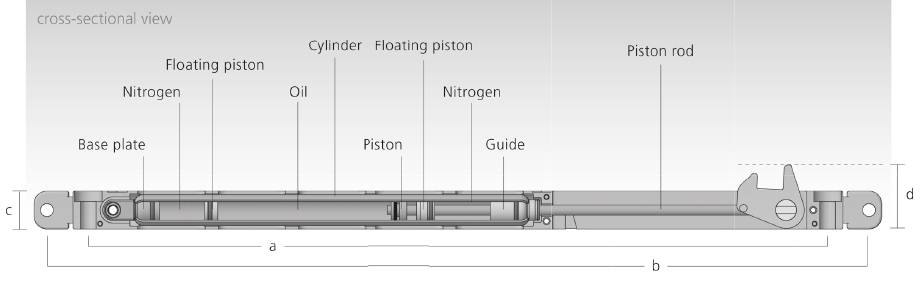

The Sliding Door Damper is a spring-damper element that combines the functions of two gas springs and one oil damper. Three functions are thus combined:
By the assist of additional assembly slots at the end of the housing, the installation becomes very easy and flexible.
|SDD 04-12:||a=286 / b=318 / c= 14,5 / d=24,6 mm|
|SOG 04-12:||a=286 / b=318 / c= 14,5 / d=24,6 mm|
|SDD 06-15:||a=423 / b=463 / c=24 / d=32,1 mm|
|SDD 06-19:||a=423 / b=463 / c=24 / d=32,1 mm|
